PLC & DCS control panelWe Design, manufacture, supply, erection & commissioning all type of PLC SCADA & DCS panel for Boiler, Turbine, process automation for various industries. We offer wide range of PLC & SCADA for all type of application. Followings are some features of the systems
- I/O handling capacity up to 10,000
- Extendable rack facility
- Discreet I/O module & processers
- Redundancy processers
- Memory module extendable as per application
- Communication : TCP/IP, Flipway, CAN open, Interbus, Modbus, Profi bus,
- Programing Langue : LD/ST/LI/FBD/ST
- SCADA : UP to unlimited tags, easy to configuration
- MMI & HMI suitable for PLC interface
- DCS of Yakogawa, Honeywell, Siemens, alen Bradley etc.
We Design, supply, erection & commissioning of all field instrument include DPT, PT, TT, IBR PG, TG, DT, draft gauge, manometer, all type temperature sensor, Gas analyser, flow element i.e. orifice assembly, ventury type, Anubar, MAC flow, Mass flow, vertex flow, etc. , All type of control valve i.e. globe type, knife age control valve, ball valve, butterfly valve, for various application, Pneumatic cylinder, Power cylinder, solenoidal valve, three way manifold, two way manifold, limit switch, proximity switch, shaft encoder, on line conductivity sensor, online PH sensor etc.We also supply all PID controllers i.e. cascade PID controller, signal loop PID controller, multi loop PID controller, On Off controller, all type Indicator, multi-channel strip chart recorder, circular chart recorder, Temperature scanner, data logger, SMPS, Isolator, signal convertor, flow indicator totalizer, alarm annunciator, LVDT, high speed counter, Chute level sensor, RF level sensor, float type level switch, flow switch, pressure switch, Pneumatic valve positioner, electro pneumatic valve positioner, I/P convertor etc.
MILL AUTOMATIONFollowing are the points to be used for mill automation:-
- AUTO CANE FEEDING:-
The Automatic Cane Feeding System for sugar mills is intended to eliminate the chances of cane choking in the Cane Cutters, Shredder, and the Donnelly Chute of First Mill, occurring because of human error and excessive feeding at wrong times.The system would monitor the critical choking points and slow down the feeding levels if a choke is beginning to develop. At other times it would allow maximum feeding, hence raising the overall crushing rate. Continuous monitoring of the choking points would minimize the need for sudden starts and stops of the feeding conveyors and maintain an almost constant crushing rate. This results in a better steam consumption and steam pressure control at the Boiler House.
- IMBIBITION CONTROL:-
Increase in addition of Imbibition water no doubt improves the Mill extraction, but more addition of Imbibition water will lead to increased steam consumption at evaporator station, which is very expensive in the present day of energy conservation.The load and speed of penultimate Mill is monitored and Imbibition water is applied in proportion to the load on the Mill either by varying the speed of Imbibition water pump by VFD or by regulating the control valve provided in the Imbibition water line.
- JUICE FLOW STABLIZATION:-
For good production of sugar it is necessary to maintain and supply of juice in a good proportion to the boiling house. With the help of juice flow stabilization we not only maintain juice flow rate ,but also totalize the juice.

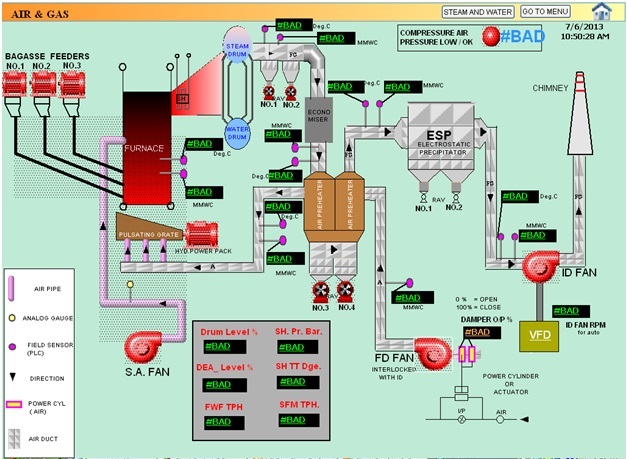

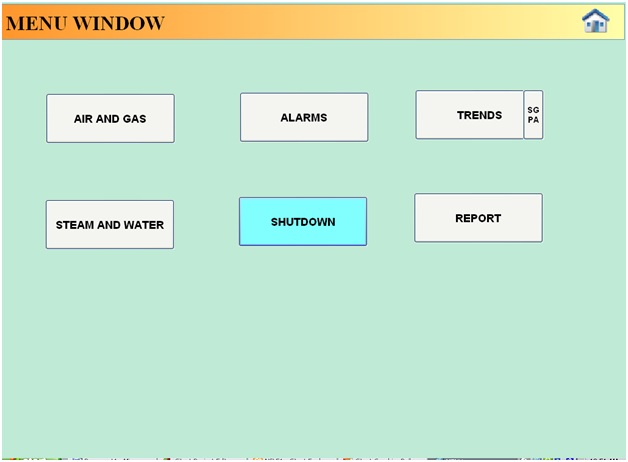

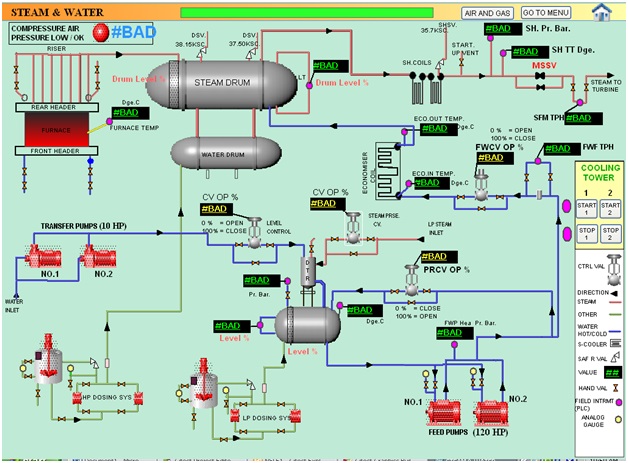

Nowadays it is very necessary to maintain the pressure of boiler for different activities. For this we provide boiler automation as per customer demand. In which according to the pressure of ID fan and FD fan works. Including this drum level control, derator level control,controlling of bagass feeder ,ID-FD ratio and much more. For automated the boiler we use PLC-SCADA base,PLC-HMI base and DCS base.Following are the loops we use for drum level control:-
- THREE ELEMENT DRUM LEVEL CONTROL
- STEAM FLOW METERING AND TOTALISER
- WATER FLOW METERING AND TOTALISER
- MINIMUM RECIRCULATION
- ATTEMPERATURE CONTROL
- COMBUSITION CONTROL
1. Fuel feeding control
2. FD Fan control
3. ID Fan control
- DERATOR PRESSURE CONTROL WITH TEMPERATURE OVERRIDE.
- DERATOR LEVEL CONTROL
- CBD & IBD LEVEL CONTROL SYSTEM
- SHOOT BLOWER PRS
- AUTO BLOW DOWN CONTROL SYSTEM FOR BOTH CBD & IBD
